Browser Emulator¶

The Cyber Fidget browser emulator lets you run real app code directly in your browser — no hardware required. It compiles your C++ app to WASM and maps every hardware feature (OLED, buttons, slider, LEDs, audio) to browser equivalents.

Who is this for?

App developers: Test your code instantly without flashing a device
Newcomers: Try Cyber Fidget apps before buying hardware
App Builder users: See your generated app running in seconds

Where to find it¶

The emulator lives inside the App Builder at cyberfidget.com/build. Use the action bar to Compile Emulator (builds your code to WASM) and Emulator (runs the last build from cache).

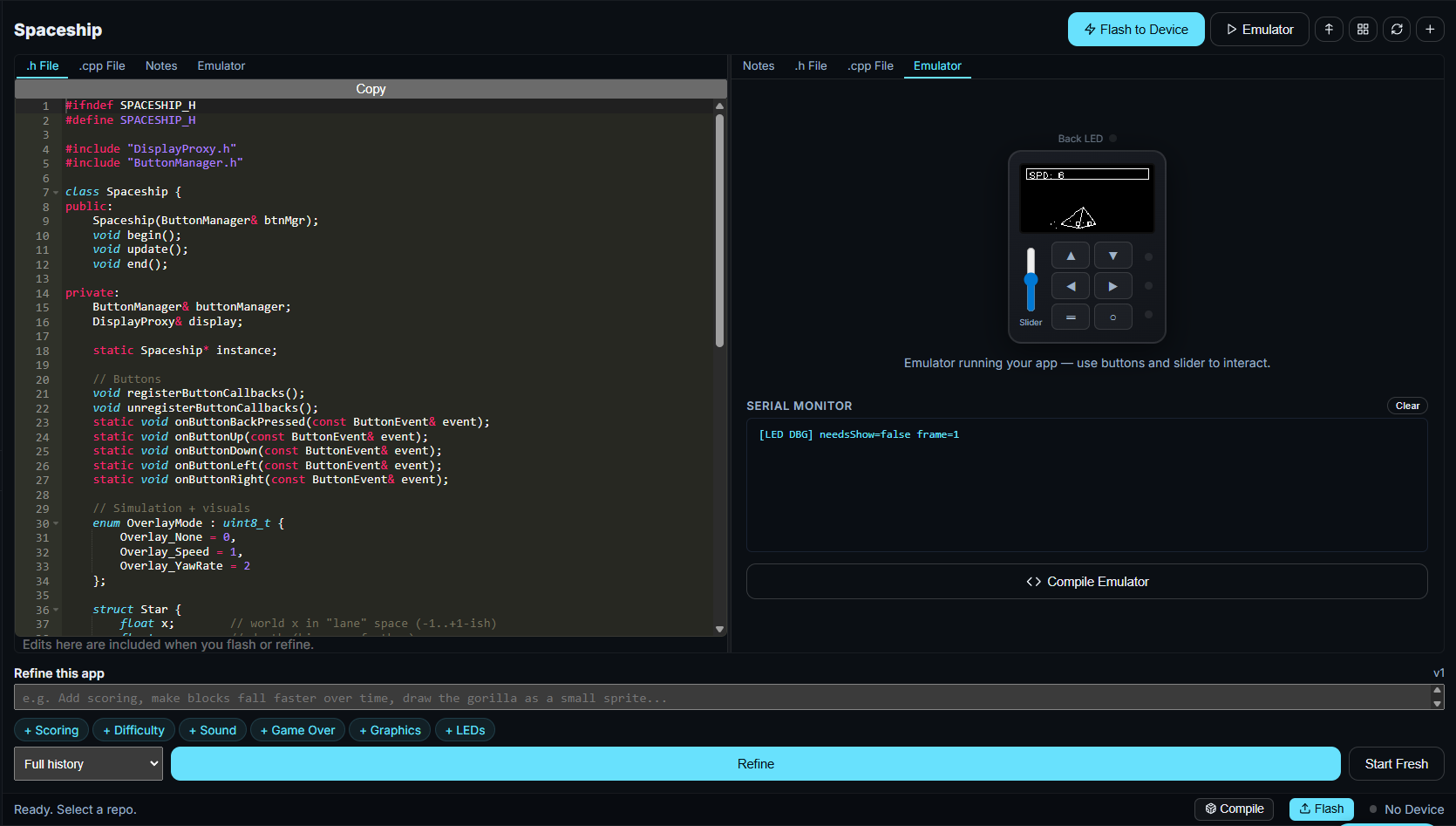

Screenshot

App Builder with emulator

Quick Start¶

flowchart LR
  subgraph You
    A[Open App Builder] --> B[Write or generate app]
    B --> C[Click Compile Emulator]
    C --> D[Click Emulator]
  end
  subgraph System
    C --> E[GitHub Actions builds WASM]
    E --> F[Download + cache in IndexedDB]
    F --> D
    D --> G[App runs in browser]
  end

1. Open the App Builder¶

Go to cyberfidget.com/build and sign in with GitHub.

2. Write or Generate an App¶

Use the wizard to generate an app, import an existing one, or write code directly in the editors.

3. Compile¶

Click the Compile Emulator button below the serial terminal. This sends your code to GitHub Actions on your own fork of the firmware repo, compiles it to WASM, and downloads the result. Takes about 1–2 minutes the first time.

First time setup

You need a GitHub account and a fork of the CyberFidget firmware repo. The App Builder walks you through forking automatically when you sign in.

4. Run¶

Click the Emulator button (play icon) in the action bar. Your app loads from cache and runs immediately.

How the emulator fits together¶

flowchart TB
  subgraph Browser
    UI[Device mockup: canvas, buttons, slider, LEDs]
    Bridge[wasm_bridge.js: loads WASM, wires events]
    WASM[Your app.wasm + loader.js]
    UI <--> Bridge
    Bridge <--> WASM
  end
  subgraph Build
    Code[Your .h + .cpp]
    Code -->|Emscripten| WASM
  end

The on-screen device (OLED, buttons, slider, LEDs) is driven by the same C++ app that would run on real hardware. The HAL (Hardware Abstraction Layer) is swapped for browser APIs so no ESP32 is involved.

Emulator Controls¶

The emulator mimics the physical Cyber Fidget layout:

flowchart LR
  subgraph Inputs
    B1[Top Left Q]
    B2[Top Right E]
    B3[Middle Left A]
    B4[Middle Right D]
    B5[Bottom Left Z]
    B6[Bottom Right C]
    S[Slider]
  end
  subgraph Device
    OLED[128×64 OLED]
    LED[4 LEDs]
  end
  B1 & B2 & B3 & B4 & B5 & B6 --> Device
  S --> Device
  Device --> OLED
  Device --> LED

Physical Control	Emulator Equivalent	Keyboard Shortcut
Top Left button	Click Top Left button	`Q`
Top Right button	Click Top Right button	`E`
Middle Left button	Click Middle Left button	`A`
Middle Right button	Click Middle Right button	`D`
Bottom Left button	Click Bottom Left button	`Z`
Bottom Right button	Click Bottom Right button	`C`
Slider (potentiometer)	Vertical slider on the left	Drag
OLED display (128×64)	Canvas at top	—
3 front LEDs + 1 back LED	Colored circles	—

Screenshot (optional)

Add a screenshot of the emulator device mockup with labels for OLED, buttons, slider, and LEDs. Save as docs/assets/emulator/device-mockup.png.

Serial Monitor¶

Below the emulator, a Serial Monitor panel shows any Serial.println() output from your app — useful for debugging.

How Compilation Works¶

When you click Compile Emulator, the following happens:

sequenceDiagram
  participant You
  participant AppBuilder
  participant GitHub
  participant Browser

  You->>AppBuilder: Click Compile Emulator
  AppBuilder->>AppBuilder: Base64-encode .h and .cpp
  AppBuilder->>GitHub: workflow_dispatch on your fork
  GitHub->>GitHub: Emscripten builds WASM
  GitHub->>GitHub: Upload artifacts
  AppBuilder->>GitHub: Poll run, download artifact ZIP
  AppBuilder->>Browser: Store .js + .wasm in IndexedDB
  You->>AppBuilder: Click Emulator
  AppBuilder->>Browser: Load from IndexedDB, run WASM

Your .h and .cpp code is base64-encoded
A GitHub Actions workflow is triggered on your fork of the firmware repo
The workflow compiles your code with Emscripten (a C++ to WebAssembly compiler)
The compiled .js and .wasm files are uploaded as build artifacts
The App Builder downloads and caches them in your browser (using IndexedDB)

Compilation runs on YOUR GitHub

Compiling uses your GitHub Actions minutes, not CyberFidget's. This keeps the service free and sustainable. Pre-built official apps are cached and don't require compilation.

Build Cache¶

Compiled WASM is cached in your browser's IndexedDB
Clicking Emulator loads from cache instantly — no recompilation
Cache persists across page refreshes
Clicking Compile Emulator always triggers a fresh build
Clicking Start Fresh clears the cache

What Works in the Emulator¶

Feature	Status	Notes
OLED display (128×64)	Full	Pixel-perfect with real firmware font rendering
All 6 buttons	Full	Click or use keyboard shortcuts
Slider	Full	Maps to the same 0–4095 ADC range as hardware
RGBW LEDs (4)	Full	Colors rendered with glow effects; dim values boosted for visibility
Serial output	Full	Routed to the Serial Monitor panel
Audio/tones	Partial	Basic tone generation via Web Audio API
Accelerometer	Stub	Returns constant values (no tilt/shake detection)
Battery level	Stub	Always reports 100%
WiFi	Stub	Not available in browser
Deep sleep	Stub	No-op (calls are safely ignored)

Tips¶

Test with keyboard shortcuts — Q/E/A/D/Z/C for buttons is faster than clicking
Watch the serial terminal — If your app isn't behaving right, add Serial.println() calls for debugging
LED values are boosted — The emulator scales up dim LED values (below brightness 50) so they're visible on screen. On real hardware, even brightness 3/255 emits visible light, but rgb(0, 3, 0) on a dark background is invisible
The slider is inverted — This matches the physical device orientation

Troubleshooting¶

"No build found. Click Compile first."¶

You haven't compiled yet, or the code changed since the last compile. Click Compile Emulator.

Compilation takes too long (>5 minutes)¶

Check your fork's Actions tab on GitHub. The workflow may have failed or be queued behind other jobs. If the run failed, open the run and read the log for errors (e.g. missing wasm/ directory, CMake or Emscripten errors).

The emulator needs a GitHub token to trigger compilation on your fork. Sign in using the GitHub button in the top right. If you're already signed in, try signing out and back in; the token may have expired.

Workflow fails with "wasm/CMakeLists.txt not found"¶

Your fork may be out of date or missing the WASM build files. Sync your fork with the upstream CyberFidget firmware repo so that the wasm/ directory and .github/workflows/compile-wasm.yml exist.

Artifact download fails or "Failed to fetch artifact"¶

GitHub Actions artifacts are only available for a limited time after the run. If you waited too long, run Compile Emulator again. If it fails immediately, check your network and that GitHub isn't blocking the request (e.g. corporate firewall).

App compiles but doesn't run / blank screen¶

Open the browser dev tools (F12) and check the Console for errors (e.g. "CyberFidgetModule is not a function", WASM compile errors).
Ensure your app has proper begin() and update() methods and that the app is selected correctly in the build (e.g. custom app name matches).
Try Start Fresh and then Compile Emulator again to clear a bad cache.

App compiles but doesn't behave right¶

Check the Serial Monitor for Serial.println() output or error messages.
The emulator runs at 50 FPS — same as the real device; timing should match.
If only some features fail (e.g. display works but LEDs don't), see the Emulator Dev Guide for known HAL behavior.

LEDs appear dim or the wrong color¶

LED channel behavior in the emulator matches the firmware's Adafruit NeoPixel shim (WRGB packing). If colors look different from hardware, the firmware's RGBController may have intentional channel adjustments for the specific LED hardware on the device.

WASM cannot be loaded from file:// URLs. You must use the App Builder on the live site (or a local HTTP server). If you're building WASM locally, serve the built files over HTTP and load them via the site's "Load from file" option if available.

Buttons or slider don't respond¶

Make sure the emulator panel has focus or click once inside it. Keyboard shortcuts (Q/E/A/D/Z/C) only work when the page (or the emulator area) has focus. If you're on a tablet or phone, use the on-screen buttons.

Serial Monitor is empty¶

Your app may not be calling Serial.println(). Add a line in begin() or update() to confirm the app is running. If you see output once then it stops, the app may have crashed or entered an infinite loop; check the browser console.

Different browser or device: cache not there¶

The IndexedDB cache is per-origin and per-browser. Compiling on your laptop won't populate the cache on your phone or another browser. Run Compile Emulator on each device/browser where you want to run the app.

I want to run completely offline¶

Right now compilation requires GitHub Actions (internet). For fully offline use, you need to build WASM locally with Emscripten and load the resulting files; see the Emulator Dev Guide (Local Development) and the follow-up plan for offline compilation.
