Build your first app in the browser¶

By the end of this page you will have written a small app, watched it run, and (if you have a Cyber Fidget handy) installed it on your device. There is nothing for you to install. You write and test in the browser; the studio builds on your computer when available, or uses its build server.

What you need

A computer with Chrome, Edge or Firefox, and an internet connection.
About 15 minutes.
For the last step only: a Cyber Fidget and a USB-C cable that carries data (not a charge-only cable).

You do not need a Cyber Fidget to do steps 1 to 6. The emulator is a copy of the device that runs on the page.

1. Open the studio¶

Go to cyberfidget.com/create/. (On the home page, the button is Open the Studio.)

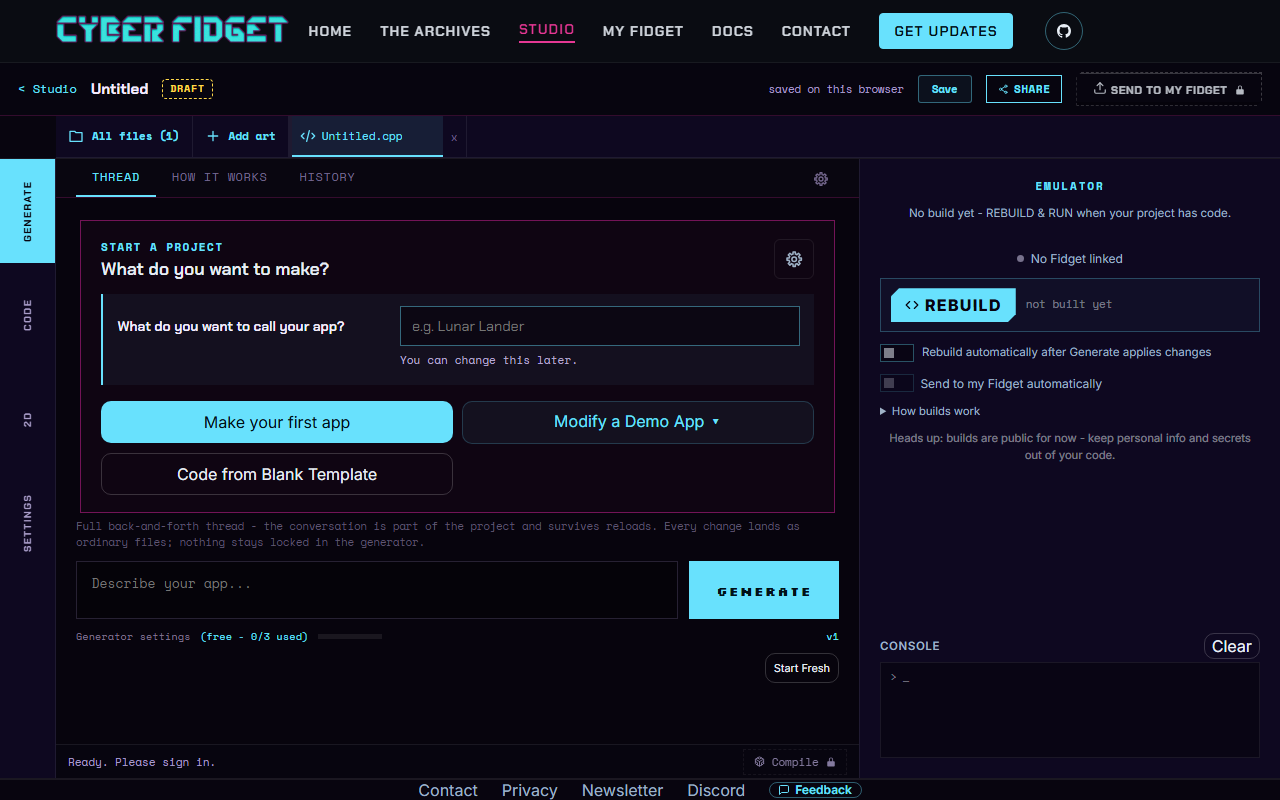

Press + Create an app. The studio opens a workspace with a panel called "Start a project".

2. Start from the blank template¶

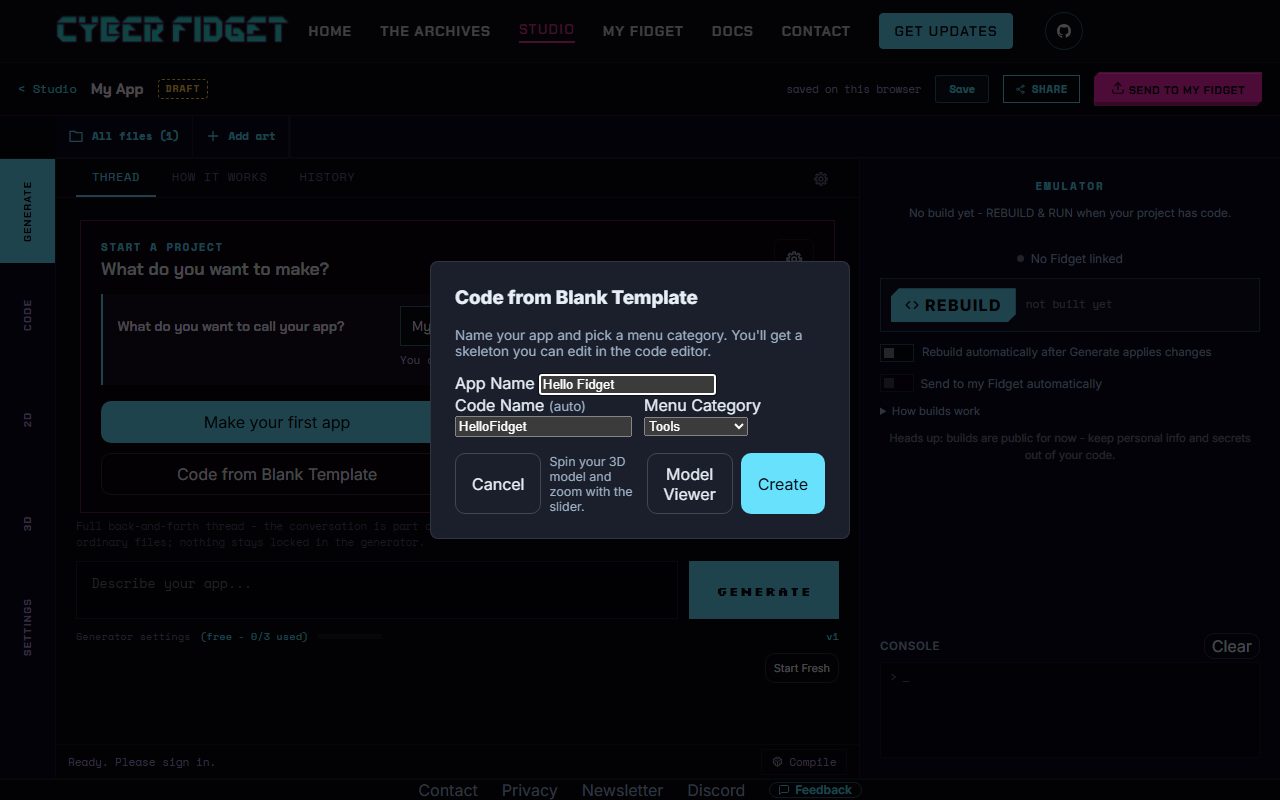

Press Code from Blank Template. A box opens with three choices:

App Name: the name you see in the studio.
Code Name: filled in for you. It becomes the file names and the class name in your code, and it is the text the starter app draws on the screen.
Menu Category: where your app will sit in the device's menu. The default is Tools. You can also pick Screensavers, Games, Examples or Media.

Pick a one-word App Name, such as Hello. Short names give short, predictable code names. If you type two words, the studio joins them and changes some capital letters (for example "Hello Fidget" gives a code name that starts Hellofidget), so the text on the screen may not match what you typed.

Press Create.

3. Look at the starter code¶

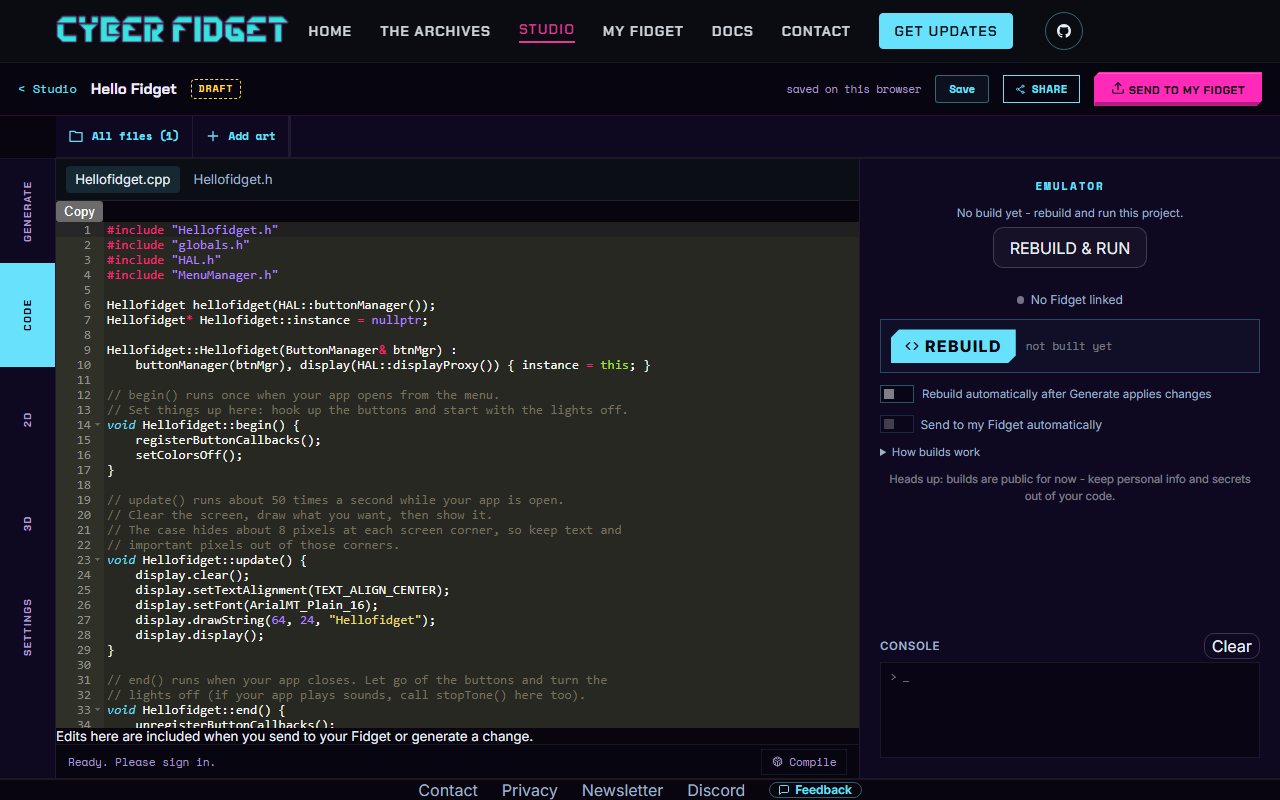

The studio jumps to the CODE tab. You will see two files: a .cpp file (the app's code) and a .h file (a short list of what the app contains). Everything you need is in the .cpp file.

Every app has three functions. The comments in the starter explain them too.

Function	When it runs
`begin()`	Once, when the app opens from the menu. Set things up here.
`update()`	About 50 times a second while the app is open. Draw the screen here.
`end()`	Once, when the app closes. Tidy up here.

See How an App Works for more.

Inside these functions two things are ready to use:

display draws on the screen (the OLED, the 128 x 64 pixel display).
buttonManager lets your app react to button presses.

The starter already hooks up the bottom-left button to close your app and return to the menu. Leave that as it is, so you can always get out.

4. Change something¶

Find the line in update() that draws the text. It looks like this, with your own code name between the quote marks:

display.drawString(64, 24, "Hello");

Change the text between the quote marks to anything you like, for example Hi there. Keep the quote marks. Short text fits best: the screen is small, and the case hides about 8 pixels in each corner.

5. Rebuild and run¶

Keep private information out of code

Builds on your computer keep your code on your computer. If the studio uses the build server instead, that build is public. Keep personal information and secrets out of your code either way.

Press REBUILD & RUN in the welcome panel on the right, or REBUILD in the emulator panel.

The studio compiles your code (turns it into a program the emulator can run). When building on your computer is available, the first build downloads about 23 MB of build tools, so it takes longer. Later builds on the computer can take a few seconds. If the computer cannot build, or building there is unavailable, the studio uses its build server; allow more time. When it succeeds, your app starts in the emulator.

Builds sent to the build server have a daily limit. Builds done on your own computer do not count toward it.

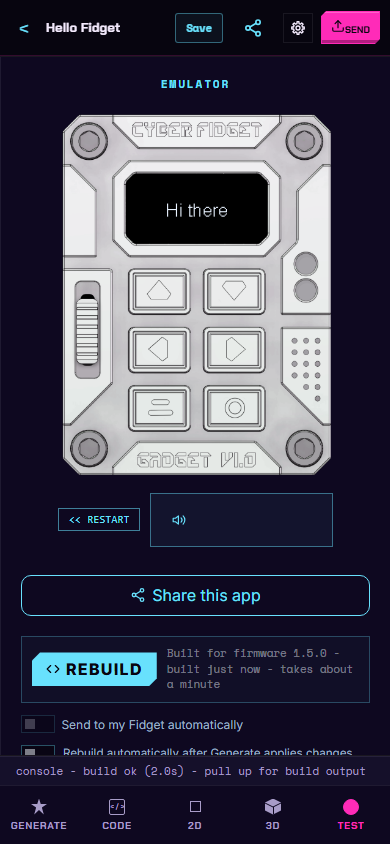

On a phone, the emulator is on the TEST tab at the bottom of the screen. The welcome action is REBUILD & RUN; the panel's build button is REBUILD. After editing code, press REBUILD to run your changes.

Try it:

Click the buttons and drag the slider in the picture, or use the keyboard keys listed in the emulator guide.
Press the bottom-left button to leave your app. << RESTART starts it again.

Two things you can ignore

The Compile button with a lock in the bottom status bar, and the "Ready. Please sign in." text next to it, are not needed for anything on this page. The emulator panel's REBUILD button does the work.

6. Add a light and a sound¶

Two short additions. Add each block where its first comment says. Rebuild and run after each one.

The Cyber Fidget has four RGBW LEDs: red, green, blue and white, each from 0 (off) to 255 (full).

A light you control with the slider¶

The slider reports a number from 0 to 255. On the device, the inverted value used here is low at the bottom and high at the top, so moving the slider up makes the blue lights brighter.

// Insert inside update(), just above display.display();
setDeterminedColorsAll(0, 0, sliderPosition_8Bits_Inverted_Filtered, 0);

Full code for this step

This full code is for code name MyApp (create it with App Name "My App"); if your app has another code name, change MyApp and myApp to yours.

In the starter, nullptr means a pointer has no object. * in a declaration marks a pointer (an address), and before a pointer reads its object. & in a type refers to an existing object; before a value it gives its address. const means the code cannot change the value through that declaration.

MyApp.cpp

#include "MyApp.h"
#include "globals.h"
#include "HAL.h"
#include "MenuManager.h"

MyApp myApp(HAL::buttonManager());
MyApp* MyApp::instance = nullptr;

MyApp::MyApp(ButtonManager& btnMgr) :
    buttonManager(btnMgr), display(HAL::displayProxy()) { instance = this; }

// begin() runs once when your app opens from the menu.
// Set things up here: hook up the buttons and start with the lights off.
void MyApp::begin() {
    registerButtonCallbacks();
    setColorsOff();
}

// update() runs about 50 times a second while your app is open.
// Clear the screen, draw what you want, then show it.
// The case hides about 8 pixels at each screen corner, so keep text and
// important pixels out of those corners.
void MyApp::update() {
    display.clear();
    display.setTextAlignment(TEXT_ALIGN_CENTER);
    display.setFont(ArialMT_Plain_16);
    display.drawString(64, 24, "MyApp");
    setDeterminedColorsAll(0, 0, sliderPosition_8Bits_Inverted_Filtered, 0);
    display.display();
}

// end() runs when your app closes. Let go of the buttons and turn the
// lights off (if your app plays sounds, call stopTone() here too).
void MyApp::end() {
    unregisterButtonCallbacks();
    setColorsOff();
}

// The bottom-left button closes your app and goes back to the menu.
void MyApp::onButtonBackPressed(const ButtonEvent& event) {
    if (event.eventType == ButtonEvent_Released) {
        instance->end();
        MenuManager::instance().returnToMenu();
    }
}

void MyApp::registerButtonCallbacks() {
    buttonManager.registerCallback(button_BottomLeftIndex, onButtonBackPressed);
}

void MyApp::unregisterButtonCallbacks() {
    buttonManager.unregisterCallback(button_BottomLeftIndex);
}

The arguments are red, green, blue, white. Drag the slider in the emulator and the LEDs change. Want a different color? Change which argument gets the slider value. More in LEDs & Color and The Slider.

A button that beeps¶

The six buttons are numbered like this:

Position	Label in the emulator	Name in code
Top left	Top Left - Up	`button_TopLeftIndex`
Top right	Top Right - Down	`button_TopRightIndex`
Middle left	Middle Left - Left	`button_MiddleLeftIndex`
Middle right	Middle Right - Right	`button_MiddleRightIndex`
Bottom left	Bottom Left - Back	`button_BottomLeftIndex` (the starter uses this one to go back to the menu)
Bottom right	Bottom Right - Select	`button_BottomRightIndex`

This block has three parts, and each part says where it goes. A "callback" is a function the device calls for you when something happens, here a button press.

In const ButtonEvent& e, & passes the existing event by reference rather than making a copy; const means this function cannot change it.

// Insert at the top of the file, below the #include lines
static void onRightPressed(const ButtonEvent& e) {
    if (e.eventType == ButtonEvent_Pressed) {
        HAL::audioManager().playTone(880, 100);
    }
}

// Insert inside begin(), below setColorsOff();
buttonManager.registerCallback(button_MiddleRightIndex, onRightPressed);

// Insert inside end(), above unregisterButtonCallbacks();
buttonManager.unregisterCallback(button_MiddleRightIndex);
HAL::audioManager().stopTone();

Full code for this step

This full code is for code name MyApp (create it with App Name "My App"); if your app has another code name, change MyApp and myApp to yours.

MyApp.cpp

#include "MyApp.h"
#include "globals.h"
#include "HAL.h"
#include "MenuManager.h"

static void onRightPressed(const ButtonEvent& e) {
    if (e.eventType == ButtonEvent_Pressed) {
        HAL::audioManager().playTone(880, 100);
    }
}
MyApp myApp(HAL::buttonManager());
MyApp* MyApp::instance = nullptr;

MyApp::MyApp(ButtonManager& btnMgr) :
    buttonManager(btnMgr), display(HAL::displayProxy()) { instance = this; }

// begin() runs once when your app opens from the menu.
// Set things up here: hook up the buttons and start with the lights off.
void MyApp::begin() {
    registerButtonCallbacks();
    setColorsOff();
    buttonManager.registerCallback(button_MiddleRightIndex, onRightPressed);
}

// update() runs about 50 times a second while your app is open.
// Clear the screen, draw what you want, then show it.
// The case hides about 8 pixels at each screen corner, so keep text and
// important pixels out of those corners.
void MyApp::update() {
    display.clear();
    display.setTextAlignment(TEXT_ALIGN_CENTER);
    display.setFont(ArialMT_Plain_16);
    display.drawString(64, 24, "MyApp");
    display.display();
}

// end() runs when your app closes. Let go of the buttons and turn the
// lights off (if your app plays sounds, call stopTone() here too).
void MyApp::end() {
    buttonManager.unregisterCallback(button_MiddleRightIndex);
    HAL::audioManager().stopTone();
    unregisterButtonCallbacks();
    setColorsOff();
}

// The bottom-left button closes your app and goes back to the menu.
void MyApp::onButtonBackPressed(const ButtonEvent& event) {
    if (event.eventType == ButtonEvent_Released) {
        instance->end();
        MenuManager::instance().returnToMenu();
    }
}

void MyApp::registerButtonCallbacks() {
    buttonManager.registerCallback(button_BottomLeftIndex, onButtonBackPressed);
}

void MyApp::unregisterButtonCallbacks() {
    buttonManager.unregisterCallback(button_BottomLeftIndex);
}

Add the first section below the #include lines and above the line that creates the app object. Add the begin() section below its existing setColorsOff(); line, and the end() section above its existing unregisterButtonCallbacks(); line. The middle-right button plays a short beep (880 Hz, for 100 milliseconds). The end() lines let go of the button and stop any sound when your app closes. See Buttons & Events and Sound & Music.

Looking for more functions to try? See the function reference.

7. Install it on your Cyber Fidget¶

Optional

You only need this step if you have a Cyber Fidget. You can skip it and keep playing in the emulator. Installing over the cable needs no account and no sign-in.

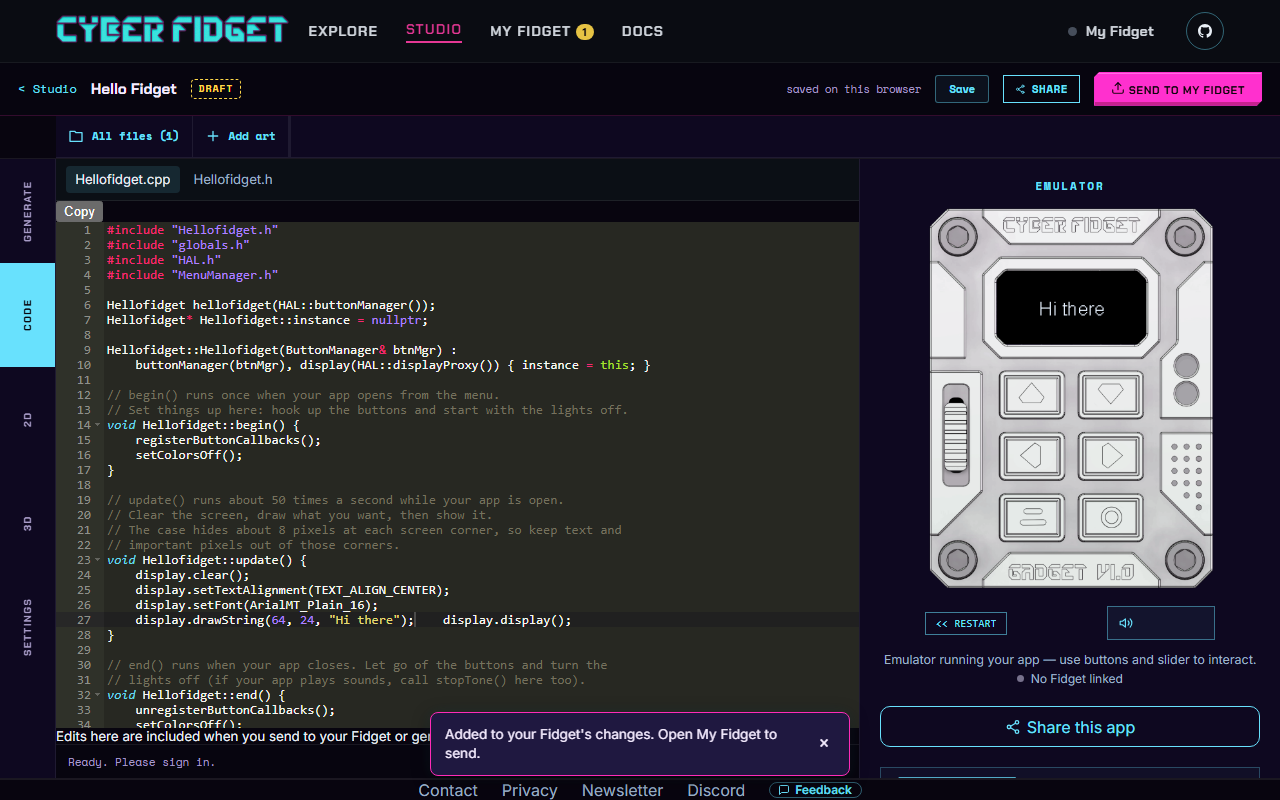

Press SEND TO MY FIDGET at the top right of the studio. This adds your app to your Fidget's list of changes. It does not install it yet. A message says "Added to your Fidget's changes. Open My Fidget to send." (If you have not built the app yet, it asks you to build first.)

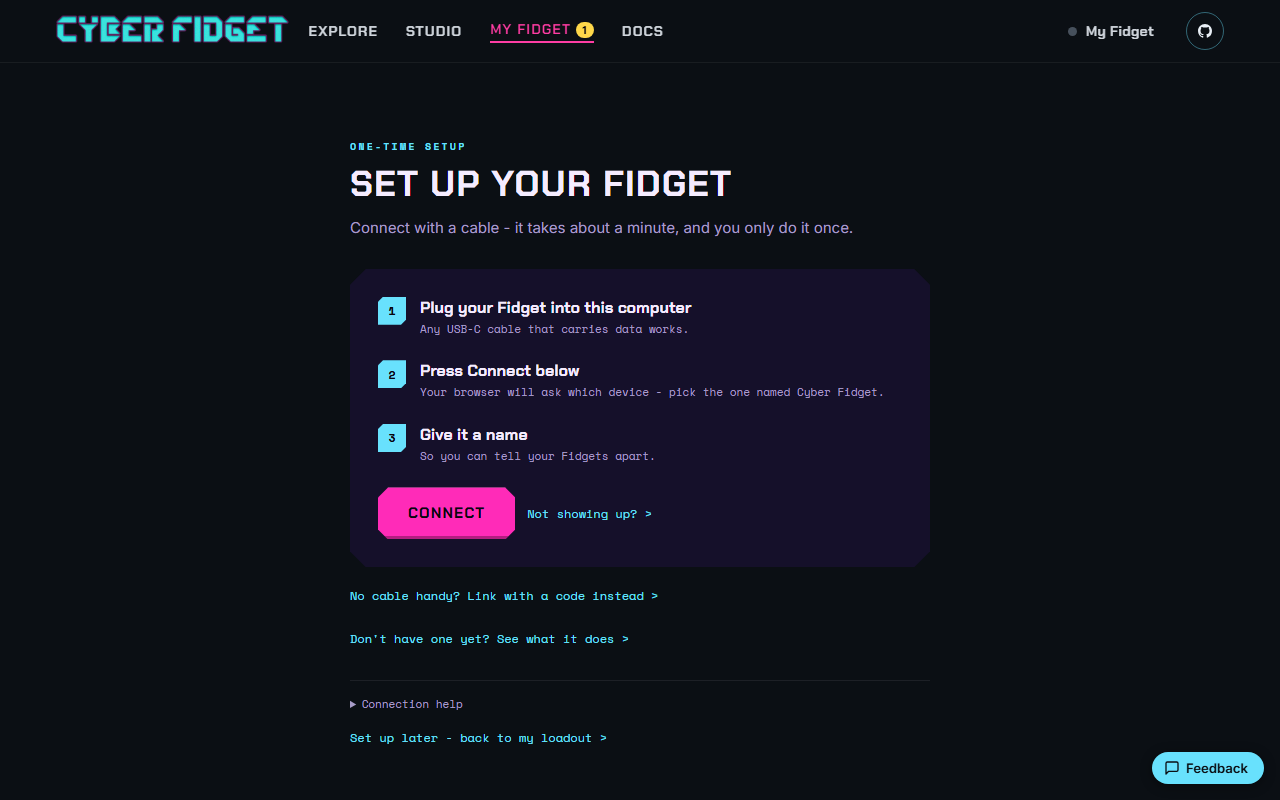

Open MY FIDGET from the top bar. The first time, you see Set up your Fidget, a one-time setup:
1. Plug your Fidget into the computer with a USB-C cable that carries data. Press Connect. Your browser shows a list of devices: pick Cyber Fidget. (No Connect button? See "If there is no Connect button" below these steps.)
2. Follow any firmware check or update instructions the page shows.
3. If asked "This browser has apps saved from before. Use them with this Fidget?", press Use them to assign those saved apps and changes to this device. Not now leaves them saved in the browser without assigning them.
4. Queued changes can be sent automatically during setup while you name your Fidget. Keep the cable plugged in and check the send report. Enter a name and press Save name, or press Skip to keep the suggested name.
5. Sign-in is optional. Press Skip if you only want to use the cable. Signing in lets you continue with WiFi setup and linking for cable-free changes; see Link your Fidget.
6. Press See my Loadout to return to your app list. A loadout is the collection of apps and menu choices for your Fidget.
If changes are still waiting, press Send to my Fidget. The page counts up as it sends ("Sending... 1 of 1"). Keep the cable plugged in until sending finishes. Read the report; if it offers Try again, use that to retry the send.
On the device, open your app from the menu. It is in the Menu Category you picked in step 2 (the default is Tools). Press the bottom-left button to go back to the menu.

If there is no Connect button

When this browser cannot connect over USB, setup offers Link with a code > and instructions to set up WiFi from the Fidget's own screen. For the cable route, open the page on a computer with Chrome, Edge or Firefox that supports connecting over USB. For the WiFi route, follow Link your Fidget; it needs an account.

Optional extra: updates over WiFi

You can also link your Fidget to your account. Once it has saved a WiFi network, it can pick up your changes without a cable. See Link your Fidget.

If something goes wrong¶

A typo. The studio shows the compiler's error message in a box. Read the first error line. It names the line number in your file. Fix that line, then press REBUILD again.
Your Fidget is not in the browser's list. The most common cause is a charge-only cable. Try another USB-C cable. The setup page also has a Not showing up? link with more help.
Did I lose my work? Save keeps your project in this browser. The studio shows "saved on this browser" when it has.
Stuck on the emulator? See the troubleshooting section of the emulator guide.

Next steps¶

Function reference: the functions you can call, on one page.
The concept pages: buttons, the screen, sound, LEDs, the slider and motion sensing.
Learn from real apps: in the studio's start panel, Modify a Demo App loads one of 16 demos (Spaceship, Dino Run, Breakout and more) that you can read, change and rebuild.
Make your own pictures and animations: Studio overview.
Optional: the studio's code generator can explain how an app works, or draft a change you then read and finish yourself.
Want full control of the firmware? The Arduino route is the advanced path.
